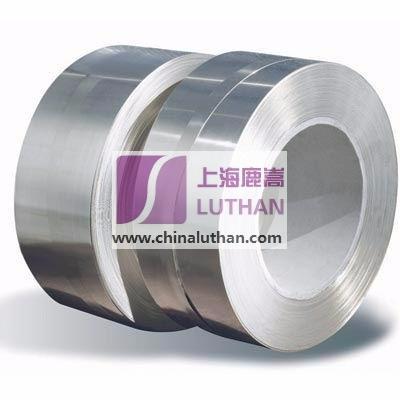

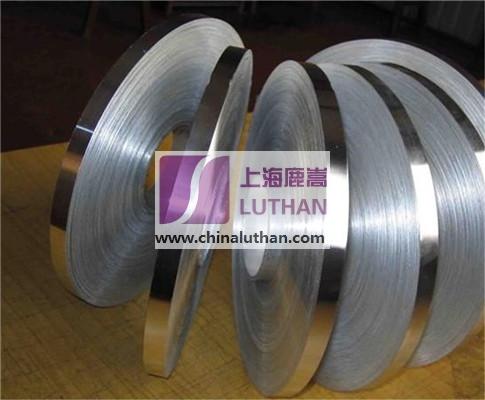

Tin Coated Copper Strip / Tinned Copper Strip / Tin Plated Copper Strip

  • Base material thickness: 0.1mm - 0.8 mm
  • Reflow Tin Plating: Sn 0.8μm - 2.0μm
  • ase Material: Brass / Bronze / Copper / Lead Frame
  • Product description: Shanghai Luthan is a professional manufacturer ofTin Coated Copper Strip / Tinned Copper Strip / Tin Plated Copper Strip
  • INQUIRY



Specifications :


1) Grade

a) Brass: C2600, C2680, C2801

b) Bronze: C5102, C5191, C5212, C5210

c) Copper: C1020, C1100, C1201, C1220

d) Cu-Fe Lead Frame: C19210, C19400

2) Base Materials: Brass Bronze Copper Cu-Fe Lead Frame

3) Base material thickness: 0.1mm - 0.8mm

4) Width: max. 300mm

5) Coil Weight: max. 2400kg; coil: 8kg/mm

6) Pre-plating: Cu: 0.4μm - 0.6μm

7) Reflow Tin Plating: Sn 0.8μm - 2.0μm

8) Standard: JIS H3100 Standard, Meets ROHS requirements




Feature:

1) Eliminating detrimental "tin whisker"

2) Improving conductivity

3) Corrosion-resistance

4) Insertion force

5) Malleability for electrical connectors are additional benefits





Application:


1) Tin Coated Copper Strip for connectors

2) Tin Coated Copper Strip for lead frames

3) Tin Coated Copper Strip for solar panel battery

4) Tin Coated Copper Strip for electronic devices for the telecommunications

5) Tin Coated Copper Strip for automotive

6) Tin Coated Copper Strip for computer

7) Tin Coated Copper Strip for semiconductor

8) Tin Coated Copper Strip for electromagnetic shielding

9) Tin Coated Copper Strip for electronics industries

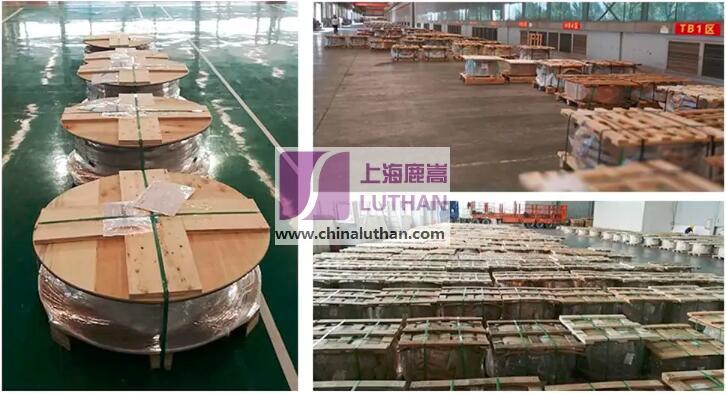

Packing:
