Copper Products

  • Copper Foil/ Rolled Copper Foil / RA Copper Foil
  • Copper Foil/ Rolled Copper Foil / RA Copper Foil
  • Copper Foil/ Rolled Copper Foil / RA Copper Foil
Copper Foil/ Rolled Copper Foil / RA Copper FoilCopper Foil/ Rolled Copper Foil / RA Copper FoilCopper Foil/ Rolled Copper Foil / RA Copper Foil

Copper Foil/ Rolled Copper Foil / RA Copper Foil

  • Grade: C1100, C1020, C1220, T2, TP2, ETP, DHP
  • Thickness: 0.018mm – 0.15mm
  • Width: Max. 400mm
  • Temper: O, 1/4H, 1/2H, H
  • Product description: Shanghai Luthan is a professional manufacturer of Copper Foil/ C11000, C10200/ Thickness: 0.018mm - 1.2mm
  • INQUIRY



Specifications of Copper Foil:


1) Grade: C11000, C12200, C1020

2) Copper: min. 99.90%

3) Thickness: 0.018mm – 0.15mm

4) Width: max. 400mm

5) Temper: O, 1/4H, 1/2H, H

6) Electric Conductivity at 20°C: C11000 >97% ,C12200 >80%, C1020 >97%

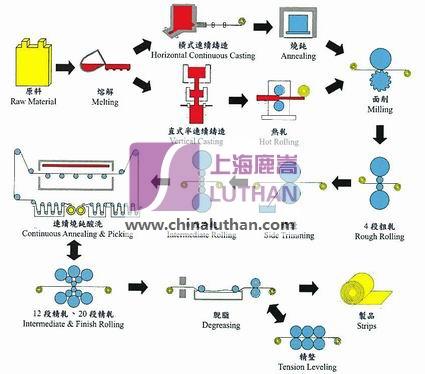

Production Process Flow:


1.Melting Furnace

2.Continuous Casting Line & Slab Casting Line

3.Hot Rolling Mill

4. Reversing Cold Rolling Mill

5.Finish Rolling Mill

6.Pickling Line

7.Degreasing Line

8.Annealing Facility

9.Tension Leveler Line

10.Roll Grinding Machine




Application:

1) Electric and electric springs, switches

2) Communication cable

3) Cable armoring

4) Mobile phone main board

5) Ion battery production lamination with PI film

6) Lead frames

7) Connectors and oscillation reeds

8) PCB field

9) PCB collector (electrode backing) materials

10) Garments accessories (eyelet, etc.)

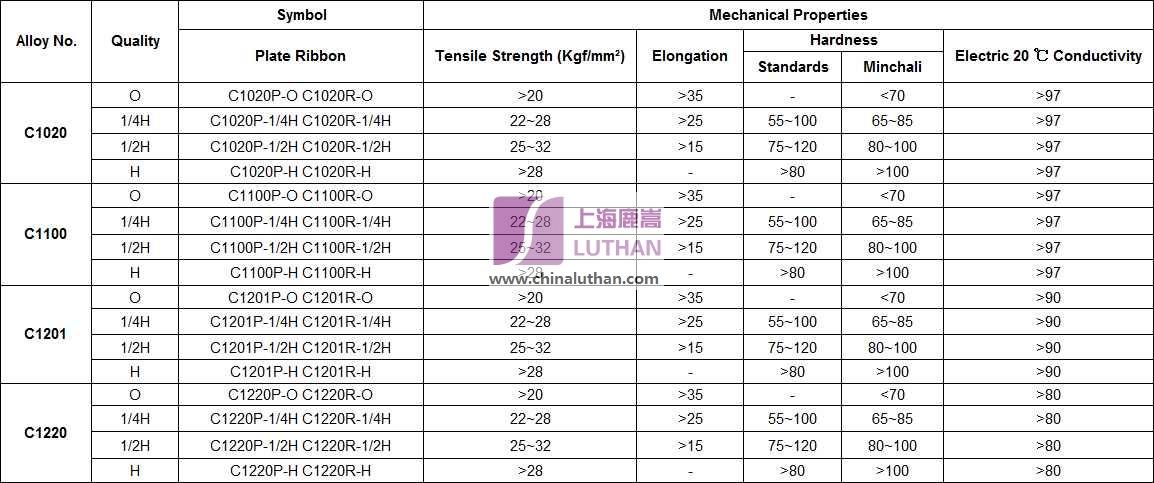

Physical Property:
