Galvanized Steel Pipe

Grade: Q195,Q235,Q345, S235JR etc.
Type: Hot dip/Pre-painted galvanized steel pipe
Product description: Manufacturers of galvanized rectangular tube, rectangular steel tube, carbon steel rectangular hollow sections, galvanized rectangular steel tube, hot dipped galvanized rectangular hollow sections, Ch
INQUIRY

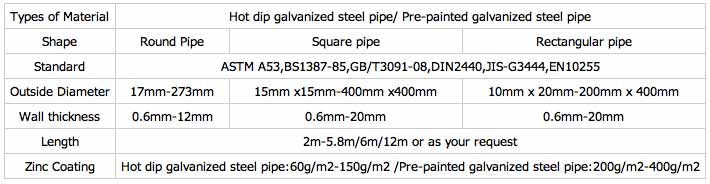

Specification of Galvanized Steel Pipe:

Galvanized steel pipe is know as galvanized steel tube, galvanized plated hollow section, etc. According to the galvanizing processing, galvanized steel pipe have two different types: hot-dip galvanized steel pipe(heavy zinc coating-over200g/cm2) and electro galvanized steel pipe(less zinc coating-40-60g/cm2). According to different shape, galvanized steel pipe can be : round pipe, rectangular pipe, oval pipe, square pipe. Galvanized steel pipe is usually used for water, building ,depot, cattle rail fence, etc..Heavy duty galvanized steel pipe have excellent anti-corrosion performance and have over 20 years life expectancy. Shanghai Luthan Metal manufactured according to ASTM,DIN, JIS,EN Standard. For more details please refer to the below Galvanized Steel Pipe size chart.

1.Standard: ASTM A53,BS1387-85,GB/T3091-08,DIN2440,JIS-G3444,EN10255

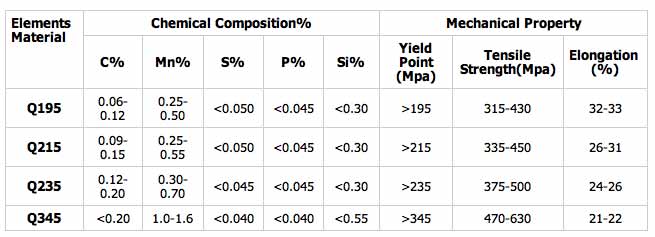

2.Grade: Q195, Q215, Q235, Q345, S235JR, S275JR, STK400, STK500
3.Type & Zinc Coating:
Hot dip galvanized steel pipe (zinc coating: 60g/m2-275g/m2)
Pre-painted galvanized steel pipe (zinc coating: 80g/m2-275g/m2)
4.Outside diameter:
Round pipe: 17mm-273mm
Square pipe:15mm x 15mm - 400mm x 400mm
Rectangular pipe: 10mm x 20mm -200mm x 400mm
5.Wall thickness:
Round pipe: 0.6mm-12mm
Square pipe:0.6mm-20mm
Rectangular pipe: 0.6mm-20mm
6.Length:2m-5.8m/6m/12m ( We can adjust length according to your request)
7.Application: can be used for carrying water or used as scaffolding frames.
8.Packaging: Standard export seaworthy packing.

9.Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Flaring Test, Bending Test, Hardness Test, Blow Test, Impact Test etc), Exterior Size Inspection.

Paremeter:
