Metallic Coated Steel

  • Cattle Rail/Panel/Gate System
  • Cattle Rail/Panel/Gate System
  • Cattle Rail/Panel/Gate System
  • Cattle Rail/Panel/Gate System
Cattle Rail/Panel/Gate SystemCattle Rail/Panel/Gate SystemCattle Rail/Panel/Gate SystemCattle Rail/Panel/Gate System

Cattle Rail/Panel/Gate System

  • round pipe:32*1.6mm;42*1.6mm
  • square pipe:40*40*1.6mm;50*50*1.6mm
  • oval pipe:30*60*1.6mm;40*80*1.6mm
  • Product description: Shanghai Luthan can supply Cattle Rail/Panel/Gate System round pipe:32*1.6mm;42*1.6mm;square pipe:40*40*1.6mm;50*50*1.6mm;oval pipe:30*60*1.6mm;40*80*1.6mm
  • INQUIRY

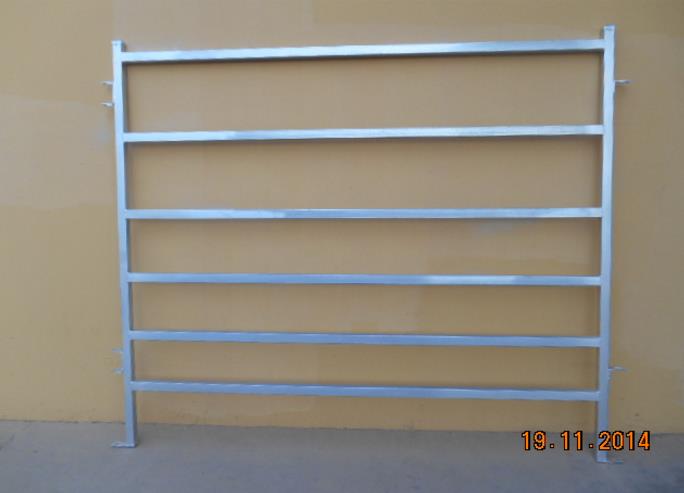

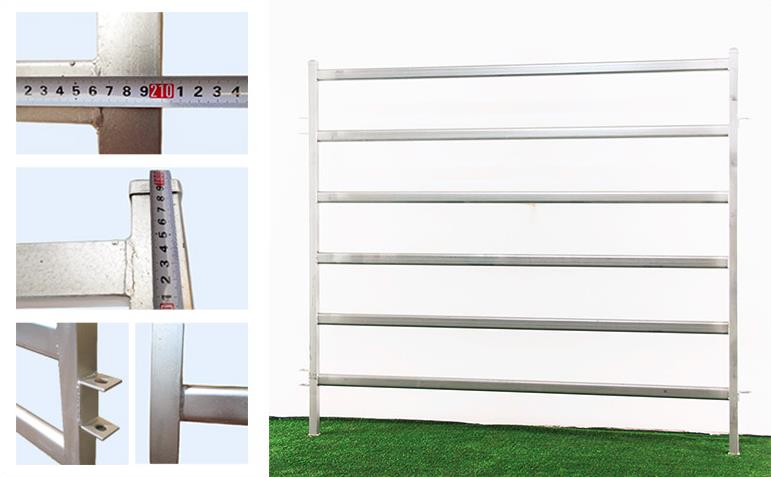

Cattle Rail/Panel System

1.Material:Carbon steel

2.Corrosion form:Hot-dipped galvanized

3.Features:It can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations.

4.Main markets:Australia, European countries, Canada, America and Asia.

5.Description:

-1.8m high with 6 bars/rails or 1.6m high with 5 bars/rails.

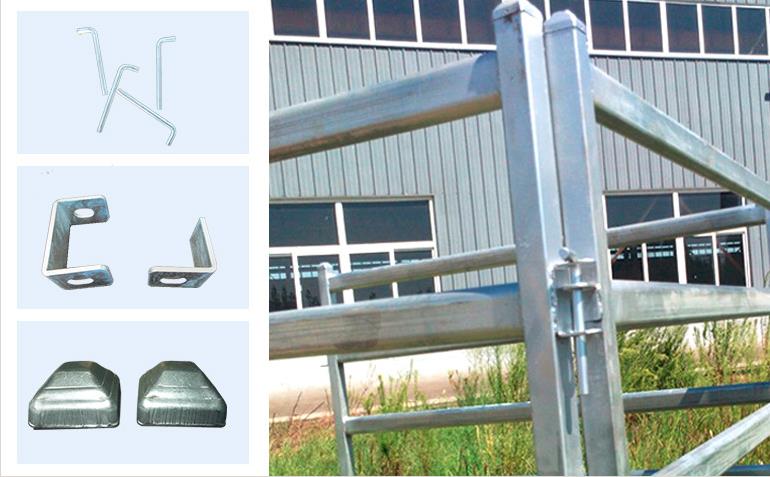

-Complete with Caps & Foot plates.

-Holes for ground pin on one leg of each panel.

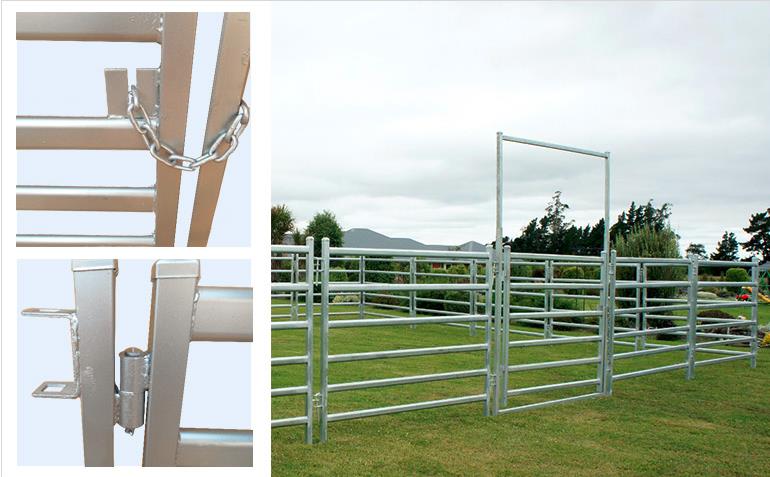

-Elongated lug holes in brackets, for ease when connecting.

6.Popular specification:

Material

Hot-dip Galvanized pipe

Size (H*L)

1.8*2.1m;1.8*2.07m

horizontal pipe

three types( round,square,oval)

1) round pipe:32*1.6mm;42*1.6mm

2) square pipe:40*40*1.6mm;50*50*1.6mm

3) oval pipe:30*60*1.6mm;40*80*1.6mm

structural style

one set=one net+two pins

bars/rails

1.8m high with 6 bars/rails or 1.6m high with 5 bars/rails

applications

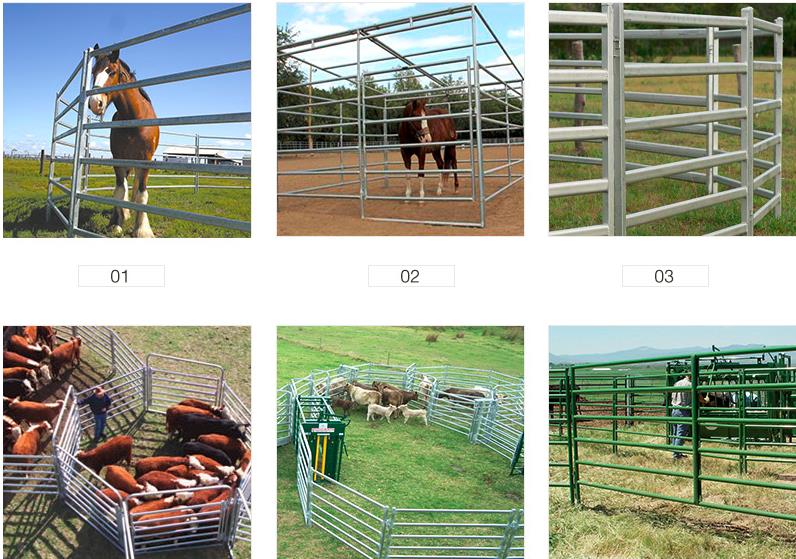

Used in protecting of animals

main markets

Australia,New Zealand,Canada,US,European countries and Asia countries

7.Remark: Different specifications are available according to customers’special inquiry or detailed drawings.
