Specifications of  Stainless Steel Retangular Pipe:

Stainless Steel Retangular Pipe is known as stainless steel rectangular tubing,stainless Stainless Steel Ornamentals,Ornamental Rectangular Tubing,Stainless Steel Square Tube, Stainless Steel RHS,etc. Shanghai Luthan manufactures according to ASTM Standard, we can offer stainless steel retangular pipe size from 20*10 to 100*80mm.

1. Standard: GB, ASTM, JIS, DIN
2. Grade: 201, 202, 301, 304, 304L, 304N, 310, 316, 316L, 321, 409L, 410, 430, 439L, 904L, etc
3. Outside Diameter: 20*10mm to 100*80mm
4. Wall Thickness: 0.3mm—3mm
5. Length: as demand
6. Surface finish: Polishing (180#,220#,240#,320#400#,600#), Hairline, acid pickled and so on
7. Applications: Frames, roll cages, truck racks, trailers, railings, etc.
8. Workability: Easy to Weld, Moderate Cutting, Forming and Machining.
9. Mechanical Properties: Brinell = 170, Tensile = 85,000 +/-, Yield = 34,000 +/-, Nonmagnetic

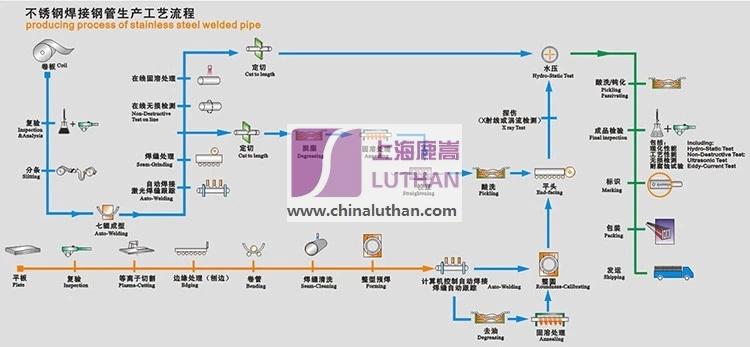

Manufacturing Process of Stainless Steel Pipes/Tubes:

The process commences with the formation of welded mother tube on the tube mill from imported and tested prime quality stainless steel strips. The latest TIG multi electrode welding technique is employed for superior weld quality and 100% Fusion, with argon purging, No filler metal added.

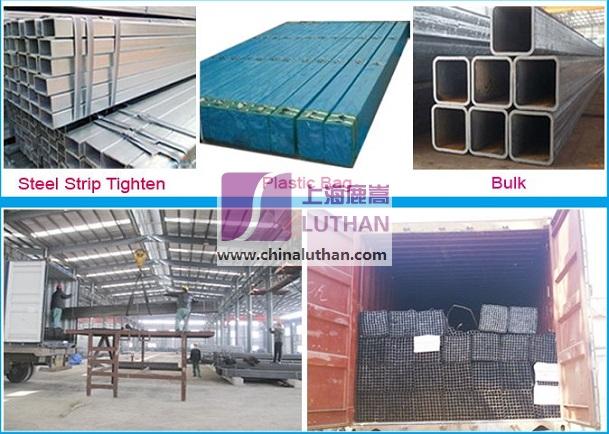

Packing of Stainless Steel Retangular Pipe:
