Stainless Steel

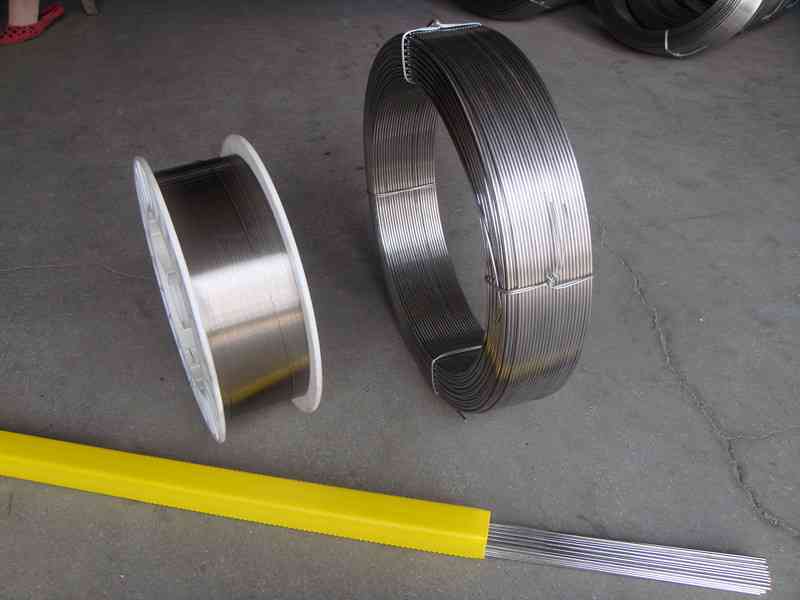

Stainless Steel Welding Wire

Material: ER304, ER308, ER308L, ER309, ER309L, etc
Wire Diameter: 0.8-5mm
Product description: Shanghai Luthan can supply Stainless Steel Welding Wire/ Welding bar, rod. Material: ER304, ER308, ER308L, ER309, ER309L, etc. Wire Diameter: 0.8-5mm. Standard: AISI, ASTM, DIN, GB, JIS, SUS
INQUIRY

Specifications of Stainless Steel Welding Wire:

Stainless steel welding wire is known as stainless steel welding rod, etc. Shanghai Luthan Metal is a professional supplier of stainless steel welding wire/rod, MIG welding wire, flux cored stainless steel welding wire, etc. We manufactured according to AISI, ASTM,DIN,GB standard, with grade ER304, ER308, ER308L, ER309, ER309L, Wire daimeter 0.8-5mm.

1. Standard: AISI, ASTM, DIN, GB, JIS, SUS

2. Grade: ER304,ER308,ER308L,ER309,ER309L, etc
3. Wire diameter: 0.8-5mm
4. Standard Length: 1m
5. Weight: 1000mm

Parameter of Stainless Steel Welding Wire:

AWS Code	Chemical Composition（%）
AWS Code	C	Si	Mn	P	S	Cr	Ni	Mo	Cu
ER304	0.03	《1	《2	《0.045	《0.03	18.00-20.00	8.00-12.00
ER308	0.08	0.30-0.65	1.0-2.5	0.03	0.03	19.5-22.0	9.0-11.0	0.75
ER308L	0.03	0.30-0.65	1.0-2.5	0.03	0.03	19.5-22.0	9.0-11.0	0.75
ER309	0.12	0.30-0.65	1.0-2.5	0.03	0.03	23.0-25.0	12.0-14.0	0.75
ER309L	0.03	0.30-0.65	1.0-2.5	0.03	0.03	23.0-25.0	12.0-14.0	0.75
ER310	0.08-0.15	0.30-0.65	1.0-2.5	0.03	0.03	25.0-28.0	20.0-22.5	0.75
ER312	0.15	0.30-0.65	1.0-2.5	0.03	0.03	28.0-32.0	8.0-10.5	0.75
ER316	0.08	0.30-0.65	1.0-2.5	0.03	0.03	18.0-20.0	11.0-14.0	2.0-3.0
ER316L	0.03	0.30-0.65	1.0-2.5	0.03	0.03	18.0-20.0	11.0-14.0	2.0-3.0
ER347	0.08	0.30-0.65	1.0-2.5	0.03	0.03	19.0-21.5	9.0-11.0	0.75	NB0.8
ER410	0.12	0.5	0.6	0.03	0.03	11.5-13.5	0.6	0.75
