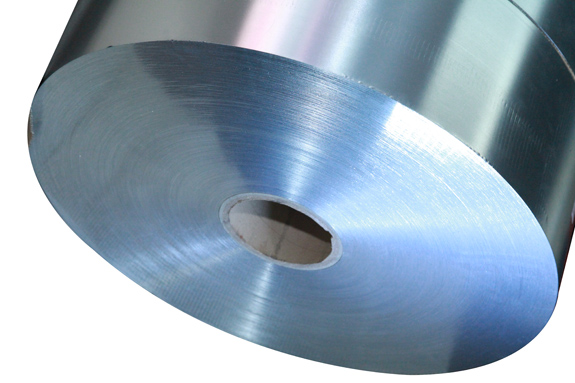

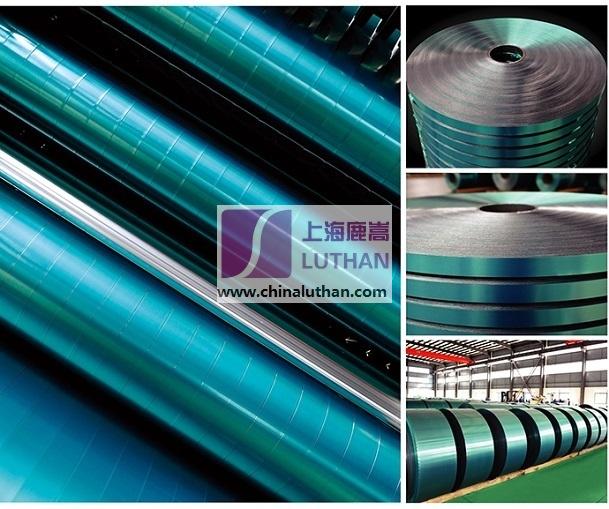

Specifications of Copolymer Coated Stainless Steel Tape:

Copolymer coated stainless steel tape is known as copolymer coated stainless steel strip,etc. It is mostly used for cable armoring.Shanghai Luthan Steel manufactures opolymer coated stainless steel tape according to global standards and we can offer thickness from 0.15mm to 0.2mm.

1. Foil thickness: 0.15 - 0.20mm
2. Reel Width: 15 - 405mm
3. Coating thickness: 0.040 - 0.60mm
4. Length: 2025 meter or according to customer
5. Coating material: ethylene copolymer
6. Peel strength of lamination: min. 6.13N/cm
7. Reel length: >2,100m
8. Core inside diameter: 150mm
9. Core material: plastic, steel and chrome coated steel
10. Material available: AISI304, AISI316, AISI316L
11. Tensile strength: 300 - 420MPa
12. Elongation: min. 15%

Copolymer Coated Steel Tape used for Armoring cable:

1. Used for armoring cable

2. Thickness: 0.1-0.2mm

3. Width: 20-900mm

4. Length: 1000-3000mm

5. Tensile strength: 300N/mm2 min.

6. Elongation: 25% min.

7. Heat Seal Strength: 17.5N/cm

Applications of Copolymer Coated Stainless Steel Tape:

For cable armoring or cable wrapping.

Mainly for Submarine Optical Fiber Cable.

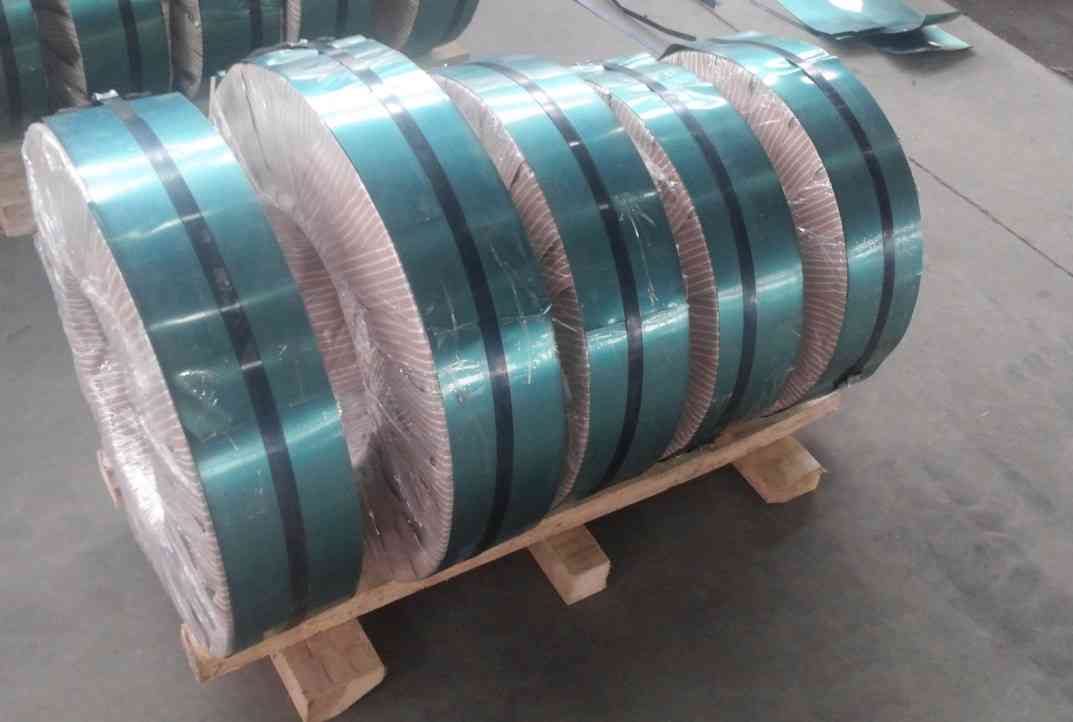

Packing of Copolymer Coated Stainless Steel Tape:
