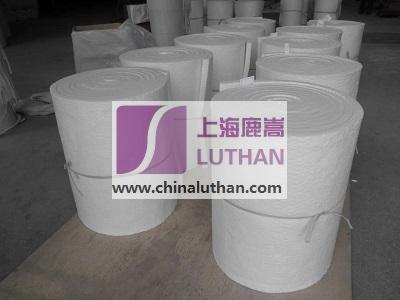

Ceramic Fiber Blanket

Temperature (℃ ): 1260/1350/1430
Width: 610/1220
Length: Customized
Product description: Luthan ceramic fiber blanket is high strength, needled insulating blanket The combination of long spun fibers and needling operation produce tough, resilient and strong blankets, which resist tearing
INQUIRY

CERAMIC FIBER BLANKET / RCF Blanket Specification:

Ceramic fiber blanket is high strength, needled insulating blanket.

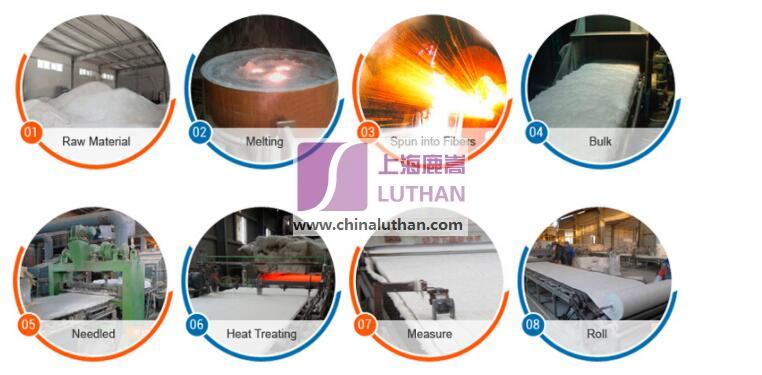

The combination of long spun fibers and needling operation produce tough, resilient and strong blankets, which resist tearing both before and after heating.

Our ceramic fiber blanket is completely inorganic and available in a variety of temperature grades, densities, and sizes. Our ceramic fiber blanket can be folded, compressed and encapsulated to produce module.

Features

Excellent thermal shock resistance

Excellent thermal stability

High tensile strength

Low thermal conductivity

Low heat storage

Typical Applications:

Pipe wrap

Furnace and kiln back-up insulation

Chimney insulation

Annealing furnace linings

Process heater linings

Typical Parameters:

Types(°C)		1050	1260	1260	1400	1450
Operation Temp(°C)		950°C (1742 °F )	1050°C (1922°F)	1100°C (2012°F)	1200°C (2192°F)	1350°C (2462°F)
Density (kg/m3)		64/80/96/128/160 or as your request
Permanent Change on Heating (%)		950°Cx24h ≤-3	1050°Cx24h ≤-3	1100°Cx24h ≤-3	1200°Cx24h ≤-3	1350°Cx24h ≤-3
Theoretic Heat Conductive Co-efficient W/(m·k)(128kg/m3)		0.15 (600°C) 0.22 (800°C)	0.12 (600°C) 0.20( 800°C)	0.12 (600°C) 0.20 (800°C)	0.12 (600°C) 0.20 (800°C)	0.16 (800°C) 0.20 (1000°C)
Tensile Strength (Thickness 25mm)		≥0.04	≥0.05	≥0.05	≥0.04	≥0.06
Chemical Composition	Al2O3(%)	44	45-46	47-49	52-55	39-40
	Al2O3+SiO2(%)	≥96	≥98	≥99	≥99	-
	ZrO2(%)	-	-	-	5~7%	15-17
	Al2O3+SiO2 +ZrO2(%)	-	-	-	-	≥99
	Fe2O3(%)	≤1.0	≤0.8	≤0.2	≤0.2	≤0.2
	Na2O+K2O(%)	≤0.4	≤0.3	≤0.2	≤0.2	≤0.2
	CaO+MgO	≤0.3	≤0.2	≤0.2	≤0.2	≤0.2
