Roof Panel Forming Machine

  • Width: 500mm to 1200mm
  • Thickness: 0.13m to 2.0mm
  • Pattern: Customized
  • Product description: Shanghai Luthan is a professional China manufacturer of Roof Panel Roll Forming Machine, metal roofing machine, sheet metal roll forming machines, roll forming machine china,Rollforming Machines, Qual
  • INQUIRY

Specification of Roof Panel Roll Forming Machine:

Roof Panel Roll Forming Machine is known as sheet metal roll forming machines, roll forming machine china,Rollforming Machines, Quality roll forming machine,Roof Panel Roll Forming Machine, etc. Shanghai Luthan can supply best quality roof panel roll forming machines with cheap price, fast delivery and excellent after sales service.



1.1 Equipment technical conditions of roof panel roll forming machine

Equipment Floor Area: 7.5*1.5*1.5m (L*W*H)

Feeding Direction: From Right to Left

Voltage: 3 phase, 380V, 50Hz

Flow Rate: 0.5m³/min; Pressure: 0.6MPa


1.2 Main technical parameters of of roof panel roll forming machine

Width of Strip ≤1200mm

Thickness of Strip ≤ 1.2 mm

Strip strength≤360

Total Power: approximately 15KW


2. Process of Roof Panel Roll Forming Machine

Uncoiling Rolling Forming→ punching cut Machine

2.1 De-coiler of roof panel roll forming machine


Width of coil: Max1500mm

Inner Diameter of Coil: 500mm

The range of inner diameter: ф490-520 mm

Outer Diameter of Coil: φ1300mm

Load Capacity: ≤5T

Expansion Model: Hydraumatic

2.2 Forming: high precision wallboard support, gear chain drive (variable frequency motor control)

2.3 Cutting length precision: ±3mm

2.4 Electric Control System


Main Features of Roof Panel Roll Forming Machine:

Shanghai Luthan roof panel roll forming machine, adopting roll forming method, can produce beautiful appearance, strong panels which are extensively used in roof construction or outdoor decoration. This type of machine possesses advanced and innovative technology that can provide convenient roller change. This type can be equipped with PLC control and touch screen.

Applications of Roof Panel Roll Forming Machine:

Construction Food Services Lawn & Garden

Shelving

Automotive Fencing Lighting Store Fixture
Display Industry Furniture Material Handling Sporting Goods
Farming HVAC Mining Transportation.

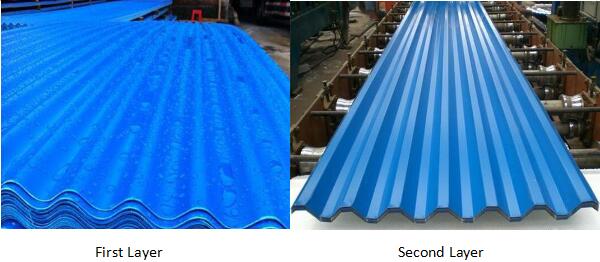

Typical roof panel:



Components of Roof Panel Roll Forming Machine:

•Coil Handling Equipment
•Straightening and Feeding Equipment
•Pre-Punching or Notching
•Forming Mill
•Cut-Off Presses and Dies
•Material Handling Equipment

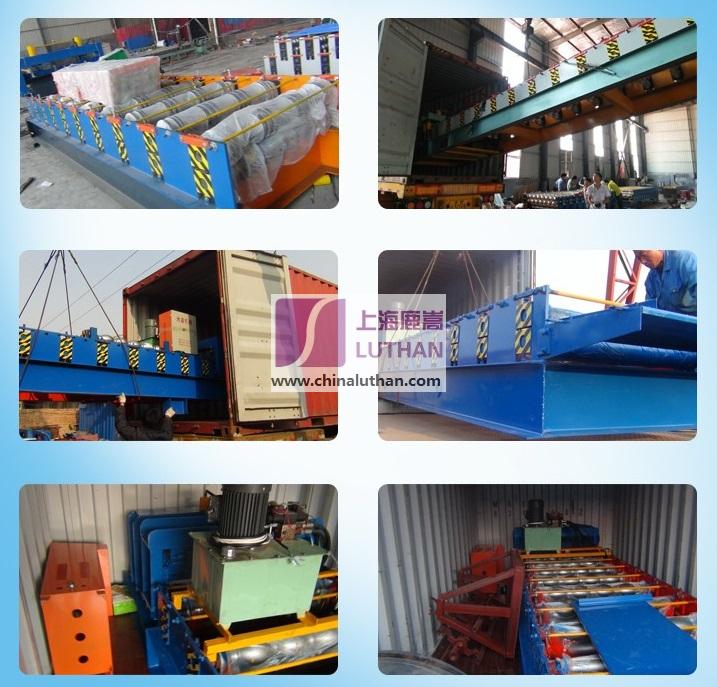

Packing of Roof Panel Roll Forming Machine:
